C12 HighlightsDesigned for ProductivityDesigned for Ergonomic UsePlug & Play, Easy to UseHigh Quality OpticsSmart choiseSpecification
Highlights
- All-in-one, plug-and-play and cost effective optical inspection system
- Built-in SD-card reader for capturing still pictures at 1920×1080 format.
- Ultra-sharp image quality with quick auto-focus
- Attractive performance/cost ratio
- Fast 60 fps provides clear images without motion blur

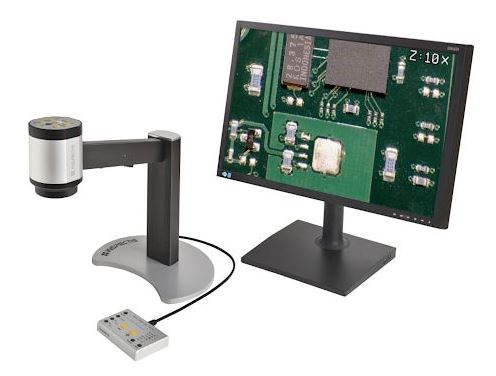

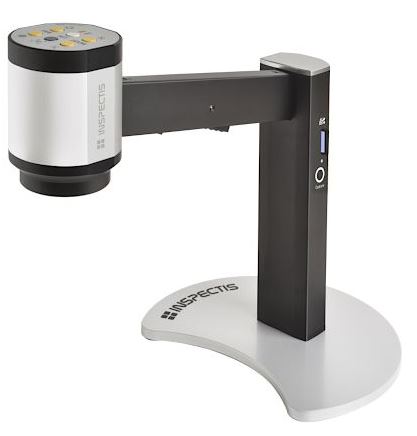

Inspectis C12 is an all-in-one, reliable and cost effective high definition digital inspection system with 12:1 optical zoom, auto focus, integrated illumination, HDMI output, on-board controls and built-in SD-card image capture. Produces crisp picture of your inspection objects up to 80x directly on LCD monitor.

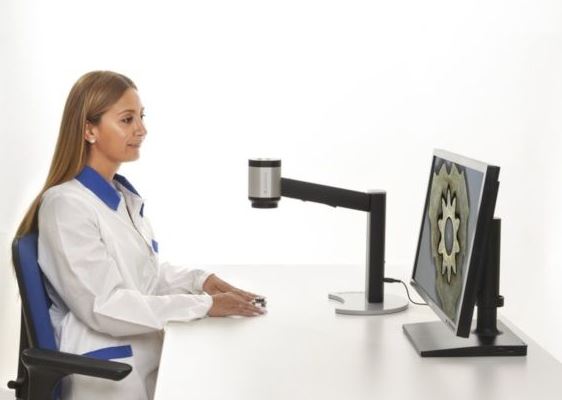

Inspectis C12 provides relief to eyes, neck and shoulders. The unique ergonomic design with 245mm working distance allows operators to sit comfortably in a good working position and carry out their optical inspection tasks efficiently.
Connect C12 camera to a High Definition display via HDMI port or your PC via Inspectis´ USB3.0 video grabber and take advantage of the astonishing image resolution, high contrast and true colours in your optical inspection work.
C12 with its high quality optics and precise autofocus produces sharp pictures of inspection objects with true colour at HD resolution. System’s standard optics with 2.2 – 26x magnification is comparable to common inspection microscopes. If further magnification is needed, Macro lenses can be added to magnify up to 80x.
Smart choise for optical inspection and documentation
Due to large size of its image sensor and pixel elements, C12 provides excellent image of objects minimum glare and reflections. Capturing still pictures on SD-card is just one button touch away. An optional built-in laser pointer ( -L ) aims at the area of interest and assists in locating it on the screen. Inspectis C12 can also be ordered as ESD protected ( -E ) for required environments.
- Video Output
- Imager
- Onboard Controls
- Remote Control
Unit (optional) - Illumination
- Size
- Weight
- Lens system
- Working distance
- Magnification at x1 zoom factor
- Magnification at x12 zoom factor
- Field of View at x1 zoom factor
- Field of View at x12 zoom factor
- HD 720p/60Hz, 720p/50Hz via HDMI female socket on the rear panel
- 1/3” CMOS, SONY ~ 1.4 mega pixels

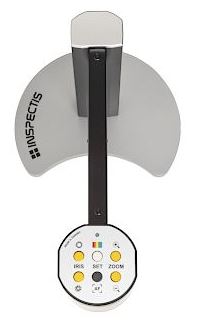

- Zoom, Iris, Auto Focus on/off, White Balance
- Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Text, Haircross overlay, Image Rotate, Image Freeze, 2 Memory Save/Recall

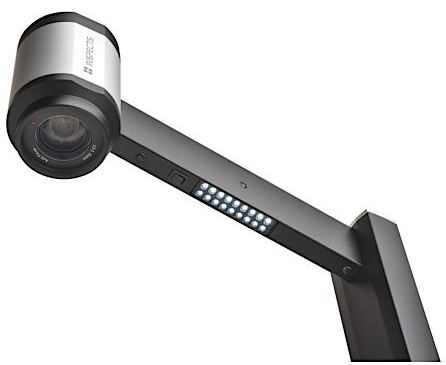

- Integrated Long-life 18x UB pure white LEDs with direction adjustment
- 395 x 240 x 360 mm including metal base
- 4.2 kg, including metal base
- 12x optical zoom with Auto Focus
- 240mm ( from lens to object )
- ~ 2.2x on 24″ monitor (~ 6.8x with +10 lens)
- ~ 26x on 24″ monitor (~ 80x with +10 lens)
- ~232 x 130 mm
- ~20.2 x 11.4 mm
C12s HighlightsCost Effective Flexible Digital InspectionExcellent Cable ManagementDesigned for Ergonomic UseHigh Quality OpticsSmart choiseSpecification
Highlights
- Cost effective flexible digital visual inspection system
- Sharp image quality with quick auto-focus
- Fast 60 fps provides clear images without motion blur
- Robust all-aluminum housing
- Configurable with a large range of Stands, Lenses, Illuminations, Image Caputre and Software
- Excellent One-Cable-Out design

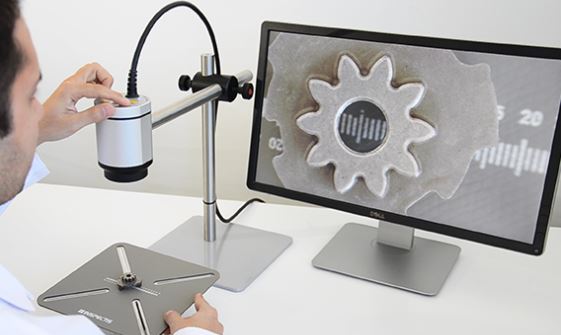

Modular design of C12s in industrial grade aluminium housing allows easy configuration of the digital microscope with a wide range of stands and mounts according to your needs.

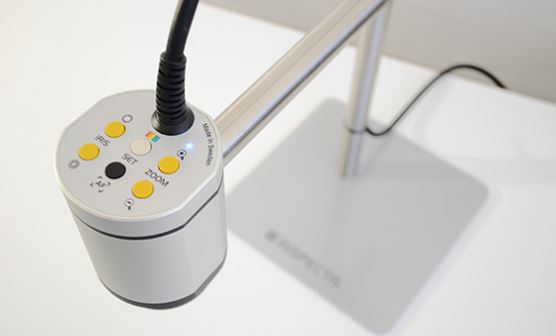

All basic parameters such as zoom, brightness and colour levels can be controlled by the user through on-board buttons on top of the device.
One-cable design with on-board AUX power output for direct attachment of Inspectis Ring Light, Matrix Single-spot and Matrix Double-spot Lights.
Inspectis C12s provides relief to eyes, neck and shoulders. The unique ergonomic design with 245mm adjustable working distance allows operators to sit comfortably in a good working position and carry out their optical inspection tasks efficiently.

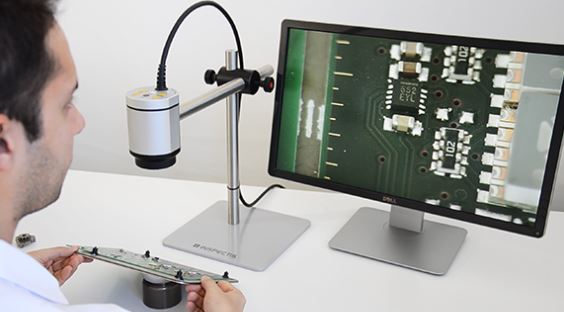

C12s with its high quality optics and precise autofocus produces sharp pictures of inspection objects with true colour at HD resolution. System’s standard optics with 2.2 – 26x magnification is comparable to common inspection microscopes. If further magnification is needed, Macro lenses can be added to magnify up to 80x.
Smart choise for optical inspection and documentation
Due to large size of its image sensor and pixel elements, C12 provides excellent image of objects minimum glare and reflections. Capturing still pictures on SD-card is just one button touch away. An optional built-in laser pointer ( -L ) aims at the area of interest and assists in locating it on the screen. Inspectis C12 can also be ordered as ESD protected ( -E ) for required environments.
- Video Output
- Onboard Controls
- Remote Control
Unit (optional) - Illumination
(Optional) - Software
(Optional) - Stand
(Optional) - Weight
- Lens system
- Working distance
- Magnification at x1 zoom factor
- Magnification at x12 zoom factor
- Field of View at x1 zoom factor
- Field of View at x12 zoom factor
- HD 720p/60Hz, 720p/50Hz via HDMI
- Zoom, Iris, Auto Focus on/off, White Balance
- Zoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, White Balance, Picture Quality Mode, Display Zoom Factor, Hair-cross overlay, Image Rotate, Image Freeze, 2 Memory Save/Recall
- LED Ring Light. Single-spot LED matrix light with Gooseneck, Double-spot LED matrix light with Gooseneck,
- INSPECTIS image view, capture, distance measurement and utility software
- Inspectis Single-arm and Double-arm Boom Stands, Track Stand with Focusing unit, XY-travel stand.
- 0.9 kg, including cable
- 12x optical zoom with Auto Focus
- ~ 245mm ( from lens to object )
- ~ 2.2x on 24″ monitor (~ 6.8x with +10 lens)
- ~ 26x on 24″ monitor (~ 80x with +10 lens)
- ~232 x 130 mm
- ~20.2 x 11.4 mm
